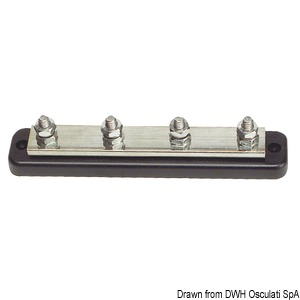

Barrette support Bus-Bar 4 x 8 mm

CODE 14.209.19

Puissance des terminaux mm 4x8 Base mm 153x38 Portée A continus 250 Couverture 14.208.25
Puissance des terminaux mm 4x8
Base mm 153x38
Portée A continus 250
Couverture 14.208.25
Base en plastique à haute capacité isolante. Base de support en cuivre nickelé, vis et écrous en inox. 12/48 V.
UM: PZ
Height: 5 cm
Weight: 0,28 kg
Width: 16 cm
Cubage: 279 cm³
Length: 4 cm

Articles de la série

Article Terminaux de dérivation mm Puissance des terminaux mm Base mm Portée A continus Couverture
Barrette support Bus-Bar 4 x 5 mm
- 4x5 107x22 100 14.208.04
Barrette support Bus-Bar 2 x 5 mm
5x4 2x5 107x22 100 14.208.04
Barrette support Bus-Bar 10 x 4 mm
10x4 2x6 145x31 150 14.208.10
Barrette support Bus-Bar 20 x 4 mm
20x4 2x6 225x31 150 14.208.20
Barrette support Bus-Bar 4 x 6 mm
- 4x6 152x32 150 14.208.24
Barrette support Bus-Bar 6 x 6 mm
- 6x6 230x32 150 14.208.26
Barrette support Bus-Bar 2 x 8 mm
6x5 2x8 153x38 250 14.208.10
Barrette support Bus-Bar 12 x 5 mm
12x5 2x8 201x38 250 14.208.30
Barrette support Bus-Bar 4 x 8 mm
- 4x8 153x38 250 14.208.25
Barrette support Bus-Bar 4 x 8 mm
- 4x8 201x38 250 14.208.30
Barrette support Bus-Bar 4 x 10 mm
- 4x10 178x51 600 14.208.31
Barrette support Bus-Bar 8 x 10 mm
- 8x10 289x51 600 14.208.32
