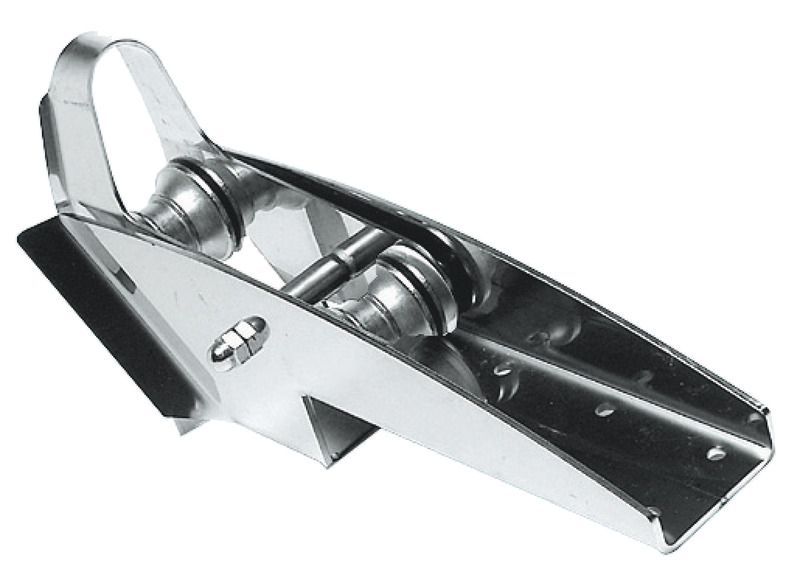

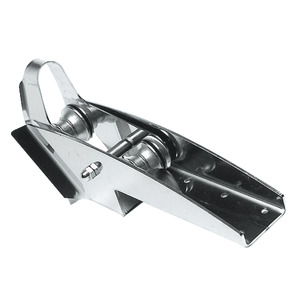

Hinged bow roller with fairlead up to 20 kg

Hinged bow roller with fairlead up to 20 kg

Go to the full master item: Hinged bow roller with fairlead up to 20 kg

CODE 01.337.00

Made of 4-mm thick polished stainless steel plate, fitted with chain guide, suitable for any type of anchor from 10 to 20 kg. Stainless steel sheave.

Hinged bow roller with fairlead up to 20 kg
Hinged bow roller with fairlead up to 20 kg

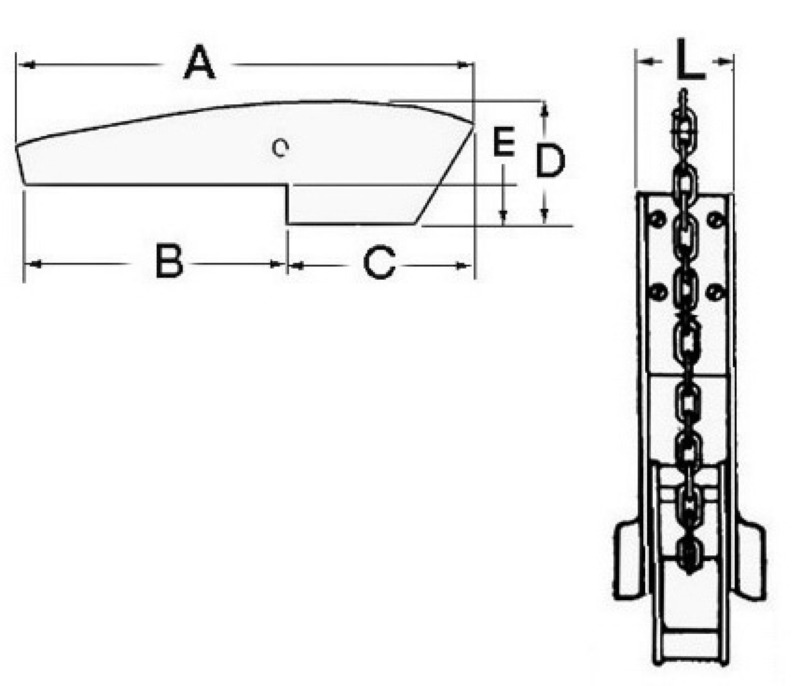

A mm 416 B mm 230 C mm 186 D mm 114
E mm 47 L mm 81
A mm 416
B mm 230
C mm 186
D mm 114
E mm 47
L mm 81
Made of 4-mm thick polished stainless steel plate, fitted with chain guide, suitable for any type of anchor from 10 to 20 kg. Stainless steel sheave.
UOM: PZ
Height: 15 cm
Weight: 4,09 kg
Width: 45 cm
Cubage: 6.750 cm³
Length: 10 cm

Master items

Item A mm B mm C mm D mm E mm L mm
Hinged bow roller with fairlead up to 20 kg
01.337.00
416 230 186 114 47 81
