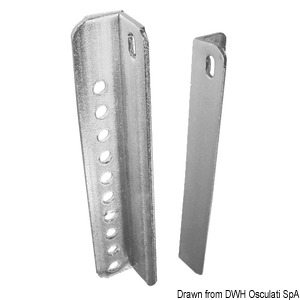

Multiple-bore angle bars 250 mm

Multiple-bore angle bars 250 mm

Go to the full master item: Accessories for central rollers

CODE 02.029.58

Description Pair of 250-mm multiple bore angle plates Matching rollers 02.029.01 02.029.18 02.029.19 02.031.09
Description Pair of 250-mm multiple bore angle plates
Matching rollers 02.029.01 02.029.18 02.029.19 02.031.09
UOM: CP
Height: 5 cm
Weight: 1,16 kg
Width: 25 cm
Cubage: 506 cm³
Length: 5 cm

Master items

Item Description Matching rollers
Bracket with tube 40 x 40 mm
02.029.56
Bracket with 40x40-mm tube 02.029.01 02.029.18 02.029.19 02.031.09
Multiple-bore brackets 100 x 100 mm
02.029.57
Pair of 100x100-mm multiple bore brackets 02.029.01 02.029.18 02.029.19 02.031.09
Multiple-bore angle bars 250 mm
02.029.58
Pair of 250-mm multiple bore angle plates 02.029.01 02.029.18 02.029.19 02.031.09
Tube for main rollers 30 x 30 x 300 mm
02.029.59
30x30x300 (length)-mm tube for central rollers 02.029.01 02.029.18 02.029.19 02.031.09
Tube for rollers 40 x 40 x 300 mm
02.029.60
40x40x300 (length)-mm tube 02.029.01 02.029.18 02.029.19 02.031.09
Plate for swinging rollers
02.029.61
Plate for swinging rollers 02.029.01 02.029.18 02.029.19 02.031.09
Pin Ø 20 mm length 208 mm
02.029.67
20-mm Ø pin - 210-mm long 02.029.03 02.029.19 02.029.21 02.029.23 02.029.43 02.031.09 02.032.09 02.032.49
Pin Ø 16 mm length 220 mm
02.029.68
16-mm Ø pin - 208-mm long 02.029.01 02.029.18 02.029.20
