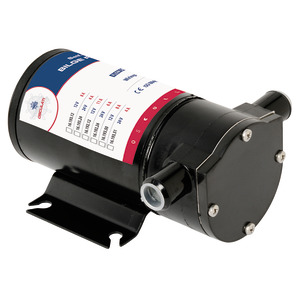

Self-priming bilge pump 12 V 7 A Version B

Self-priming bilge pump 12 V 7 A Version B

Go to the full master item: Self-Priming bilge pump

CODE 16.193.50

Self-priming bilge pump 12 V 7 A Version B
Self-priming bilge pump 12 V 7 A Version B
Self-priming bilge pump 12 V 7 A Version B
Version B V 12 Flow l/min 30 Current draw A 8
OPTIONAL fittings 1/2” 19 mm Spare impeller 16.193.73
Version B
V 12
Flow l/min 30
Current draw A 8
OPTIONAL fittings 1/2” 19 mm
Spare impeller 16.193.73
Self-priming pump with neoprene impellers. Watertight in compliance with ISO 8846 standards (it can be mounted in the engine room).
- Version A: Electrophoresis-coated engine case.
- Version B: Model MKII fitted with pump unit made of fiberglass-reinforced thermosetting resin + stainless steel internal inserts.
UOM: PZ
Height: 12 cm
Weight: 2,06 kg
Width: 19 cm
Cubage: 2.052 cm³
Length: 9 cm

Master items

Item Version V Flow l/min Current draw A OPTIONAL fittings Spare impeller
Self-priming bilge pump 12 V 7 A
16.193.12
A 12 35 8 1/2” 19 mm 16.193.73
Self-priming bilge pump 24 V 4 A
16.193.24
A 24 35 4 1/2” 19 mm 16.193.73
Self-priming bilge pump 12 V 12 A
16.192.12
A 12 45 12 1/2” 19 mm 16.193.73
Self-priming bilge pump 24 V 7 A
16.192.24
A 24 45 7 1/2” 19 mm 16.193.73
Self-priming bilge pump 12 V 7 A Version B
16.193.50
B 12 30 8 1/2” 19 mm 16.193.73
