Nordik cleat mirror-polished AISI316 360 mm

Go to the full master item: Nordik cleat

AISI 316

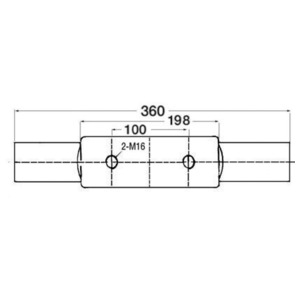

A mm	360	B mm	90	C mm	198	D mm	100
E mm	60	Stud Ø mm	16	Breaking load kg	8606

Made of mirror-polished AISI316 stainless steel, 2-stud mounting.

UOM: PZ

Height: 10 cm

Weight: 1,51 kg

Width: 35 cm

Cubage: 2.100 cm³

Length: 6 cm

Item	A mm	B mm	C mm	D mm	E mm	Stud Ø mm	Breaking load kg
40.137.01	150	45	90	47	30	8	4324
40.137.02	205	55	120	69	35	10	5058
40.137.03	265	70	150	83	40	12	5007
40.137.04	310	80	160	83	50	16	7246
40.137.05	310	80	200	83	85 w. basis oval	16	7791
40.137.06	360	90	198	100	60	16	8606
40.137.08	500	120	280	155	85	16	8984
