Oval pipe handrail AISI316 external screws 750 mm

Oval pipe handrail AISI316 external screws 750 mm

Go to the full master item: Oval pipe handrail, hidden screws

CODE 41.910.30

Oval pipe handrail AISI316 external screws 750 mm
Oval pipe handrail AISI316 external screws 750 mm
Oval pipe handrail AISI316 external screws 750 mm

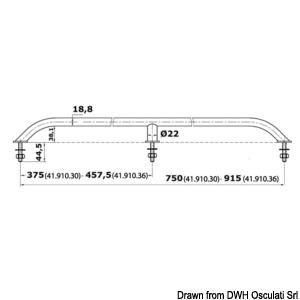

Length (L) mm 750 F mm 782 Height mm 58 Studs 3
Length (L) mm 750
F mm 782
Height mm 58
Studs 3
Made of mirror-polished stainless steel. 19x25-mm section, mounting with 2 x 5/16-mm Ø studs.
UOM: PZ
Height: 11 cm
Weight: 0,66 kg
Width: 79 cm
Cubage: 3.042 cm³
Length: 4 cm

Master items

Item Length (L) mm F mm Height mm Studs
Oval pipe handrail AISI316 external screws 220 mm
41.910.09
220 254 58 2
Oval pipe handrail AISI316 external screws 305 mm
41.910.12
305 339 65 2
Oval pipe handrail AISI316 external screws 407 mm
41.910.16
407 441 58 2
Oval pipe handrail AISI316 external screws 460 mm
41.910.18
460 524 58 2
Oval pipe handrail AISI316 external screws 610 mm
41.910.24
610 640 58 2
Oval pipe handrail AISI316 external screws 750 mm
41.910.30
750 782 58 3
Oval pipe handrail AISI316 external screws 915 mm
41.910.36
915 947 58 3
