Master catalogueElectrical equipment14 - Electrical materialsModel ELITE electrical control panelsWave Design electric control panel with rocker switches and LED on/off indicating lightsWave electric control panel 4 switches

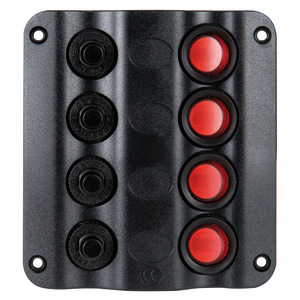

Wave electric control panel 4 switches

Go to the full master item: Wave Design electric control panel with rocker switches and LED on/off indicating lights

CODE 14.104.01

IP54 Master Item description:

Made of black plastic, equipped with toggle switches and resettable thermal automatic fuses. Equipped with sticking labels to identify the different uses.

Product Specifications

(Select the desired features to view the corresponding item)

Number of switches

Fuses provided

mm

UOM: PZ

Height: 10 cm

Weight: 0,18 kg

Width: 10 cm

Cubage: 500 cm³

Length: 5 cm

Made of black plastic, equipped with toggle switches and resettable thermal automatic fuses. Equipped with sticking labels to identify the different uses.

Master items

Item	Number of switches	Fuses provided	mm
14.104.01	4	4Ax1 + 6Ax1 + 8Ax1 + 10Ax1	110x100
14.104.02	6	5Ax2 + 10Ax2 + 15Ax2	160x100
14.104.03	8	4Ax1 + 5Ax2 + 6Ax2 + 8Ax2 + 10Ax1	210x100
14.104.04	3 + 1 lighter plug	4Ax1 + 6Ax1 + 8Ax1 (power outlet)	125x100
14.104.05	3 + 12 V voltmeter	4Ax1 + 6Ax1 + 8Ax1	110x100
14.104.06	5+1 lighter plug	5Ax2+10Ax2+15Ax2	180x107
14.104.07	5 + 12 V voltmeter	5Ax1+10Ax2+15Ax2	160x107
14.104.08	3/30 V voltmeter + lighter plug. Kit compatible with any panel series 14.104.01/02/03/04/05	-	54x100
14.104.09	3/30 V voltmeter + dual USB plug. Kit compatible with any panel series 14.104.01/02/03/04/05	-	54x100

In stock

Suggested retail price (Italia)

Starting from	Unit Price	Price by PZ
1 PZ	24,90 €	24,90 €
