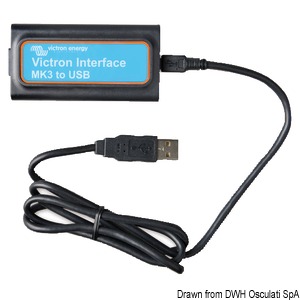

Connection kit for Victron port and USB port

CODE 14.270.39

This system combines a pure sine wave inverter and a sophisticated battery charger using adjustable recharge technology. Compatible with lithium batteries.
Two AC outlets. In case of power shortage from the dock or from the generator, the system continuously feeds what's connected.
The second outlet is available in case of AC source, only. The devices, such as boilers, which might run the battery down should be connected to this outlet.
Parallel + three-phase function. Up to 6 units can be connected in parallel. For the three-phase current, 3 units of the same kind can be connected. Up to 6 series of 3 units each can be connected in parallel.
Power control: the very powerful multiplus device can absorb a lot of power from the dock or the generator. By means of the multicontrol panel (14.270.32), the current draw can be monitored and a maximum limit can be set. Depending on the limit set, the multiplus device will only use the remaining energy to charge the batteries.
Power assist: whenever a power peak is required for a short period, the multiplus device will offset the power shortage drawing energy from the battery. When the current draw drops, the surplus current is used to recharge the batteries.
The micro-processor operated battery charger is fitted with a 4-stage bulk-absorption-float-storage charge system similar to the Phoenix/Skylla battery chargers.
- Aluminium body
- Protection devices against short circuit, overcharge, too low or too high battery, high ripple frequency, etc.
