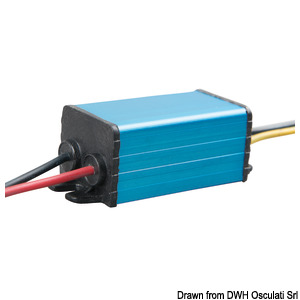

Orion-Tr Smart voltage convertor 24/12-5A

Orion-Tr Smart voltage convertor 24/12-5A

Go to the full master item: VICTRON DC/DC non-insulated high-power voltage converter to be also used as battery charger - Adjustable outlet voltage version

CODE 14.277.39

V - Inlet 15 - 40 V - Outlet 12 A outlet - Continuous 5 A outlet - Max 5
Efficiency % 93 mm 25x43x20
V - Inlet 15 - 40
V - Outlet 12
A outlet - Continuous 5
A outlet - Max 5
Efficiency % 93
mm 25x43x20
ON-OFF remote connection. Adjustable outlet voltage. Parallel switching possible for more power.
UOM: PZ
Height: 7 cm
Weight: 0,12 kg
Width: 10 cm
Cubage: 700 cm³
Length: 10 cm

Master items

Item V - Inlet V - Outlet A outlet - Continuous A outlet - Max Efficiency % mm
Orion-Tr Smart voltage convertor 24/12-5A
14.277.39
15 - 40 12 5 5 93 25x43x20
VICTRON DC/DC non-insul.converter 25A 18-35V
14.277.40
18 - 35 10 - 15 25 35 96 65x88x160
VICTRON DC/DC non-insul.converter 40A 18-35V
14.277.41
18 - 35 13,2 40 55 95 65x188x185
VICTRON DC/DC non-insul.converter 70A 18-35V
14.277.42
18 - 35 10 - 15 70 85 92 65x88x195
VICTRON DC/DC non-insul.converter 10A 9-18V
14.277.52
9 - 18 20 - 30 10 20 95 45x90x125
VICTRON DC/DC non-insul.converter 20A 9-18V
14.277.53
9 - 18 20 - 30 20 30 93 65x88x195
