Small telescopic retractable davit

CODE 42.358.00

FLUSH

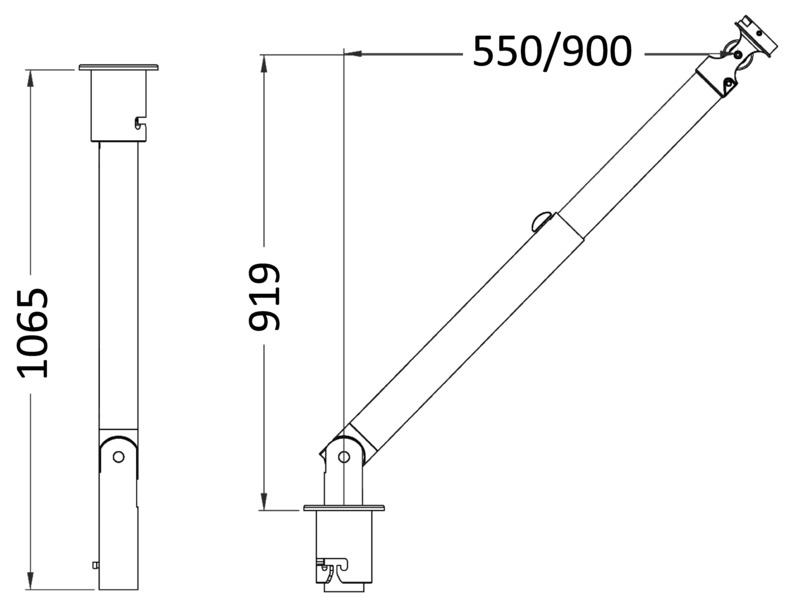

Capacity kg 180 per pair Fastening base Ø mm 160 Recess bore Ø mm 112 Telescopic tubes Ø (inside/outside) mm 73/80
mm - Height (H) 990 mm - Reach (L) 550/900 mm - inside (D) 1115 2
Drain bag OPTIONAL 42.358.90
Capacity kg 180 per pair
Fastening base Ø mm 160
Recess bore Ø mm 112
Telescopic tubes Ø (inside/outside) mm 73/80
mm - Height (H) 990
mm - Reach (L) 550/900
mm - inside (D) 1115
2
Drain bag OPTIONAL 42.358.90
49.560.00 OPTIONAL system for installation on the gangplank

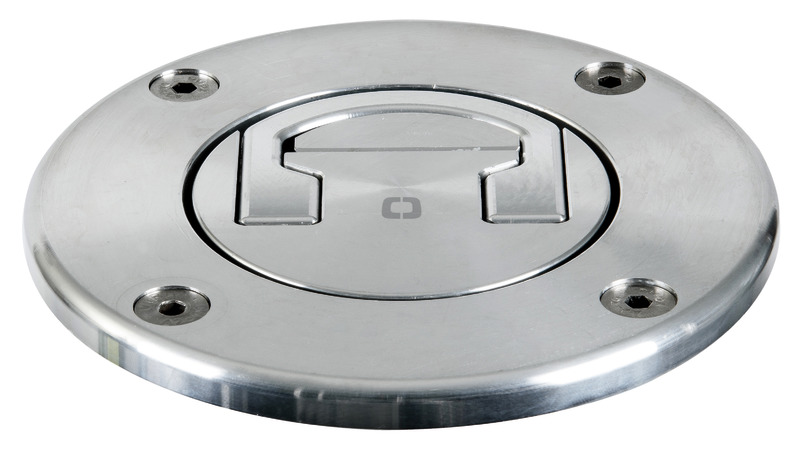

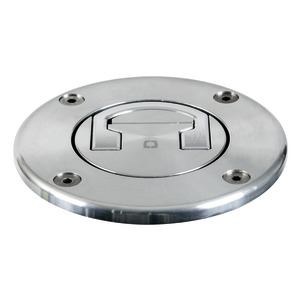

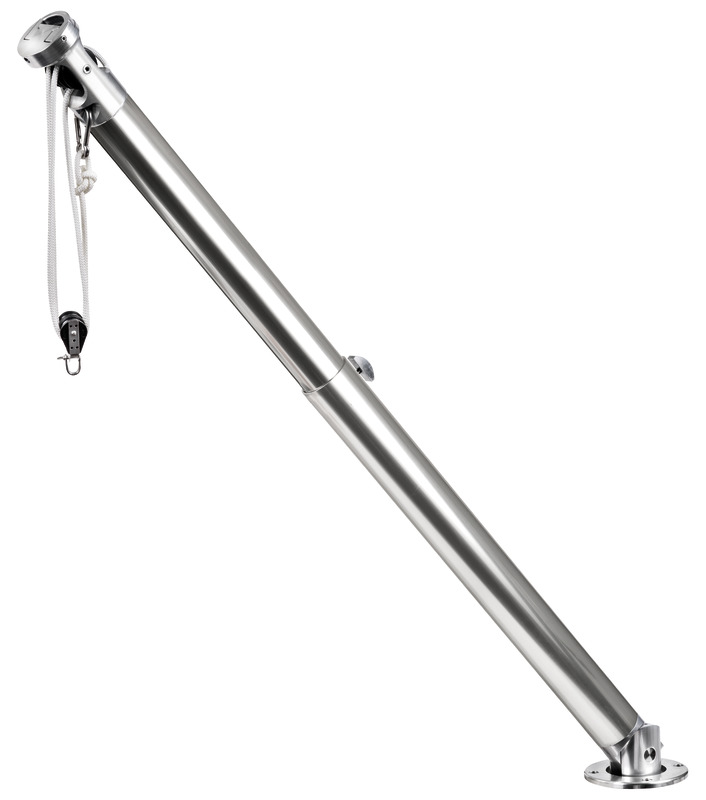

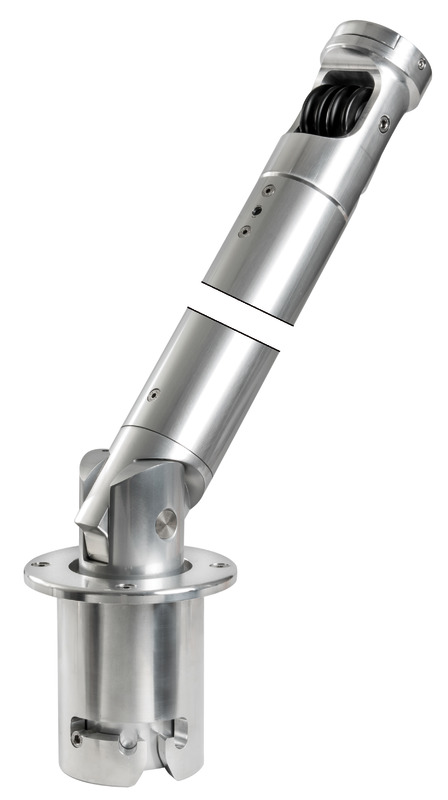

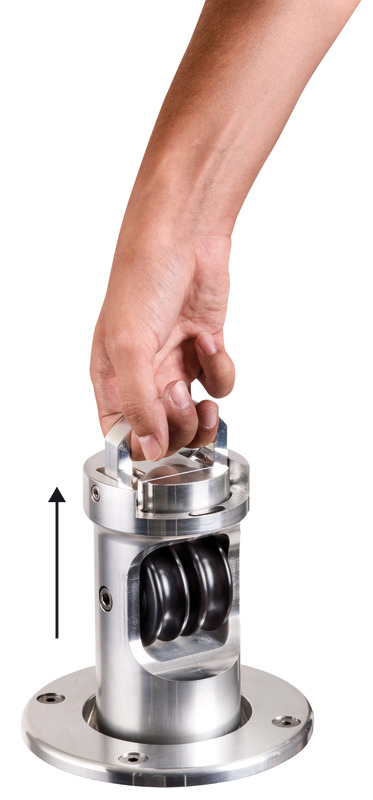

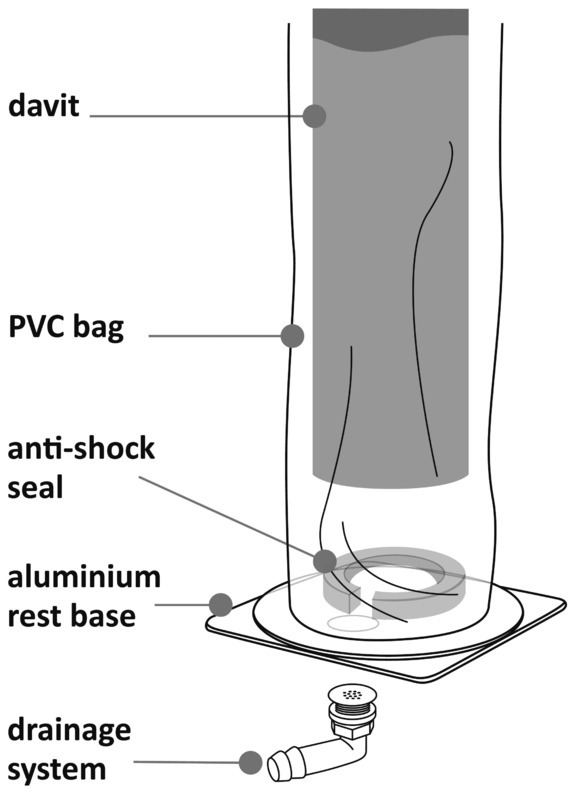

Dual universal retractable davit kit made of anodized aluminium.When in retracted position, it is hidden under the walking surface and leave the deck clear.Fitted with double sheave and becket for both gangway and dinghy.Two operating positions: in line with the boat (dinghy holding) or inclined at 20° on the inner part (gangway holding). The telescopic tube has a handle that can be rested on its head and adjusts the pole at different lengths depending on the needs and on the dinghy type.OPTION 42.358.90: PVC drain bag with hose connector to be used in case of water seepage. Easy to install on the davit base by means of a metal clamp. Anodized aluminium rest base and anti-shock seal + drainage system.

Master items

Item Capacity kg Fastening base Ø mm Recess bore Ø mm Telescopic tubes Ø (inside/outside) mm mm - Height (H) mm - Reach (L) mm - inside (D) Drain bag OPTIONAL
Small telescopic retractable davit
180 per pair 160 112 73/80 990 550/900 1115 2 42.358.90
