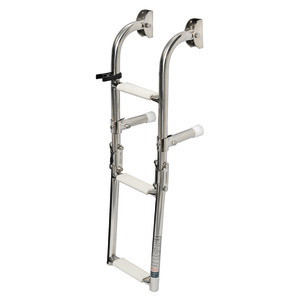

Foldable ladder AISI316 extra narrow 3 steps

Foldable ladder AISI316 extra narrow 3 steps

Go to the full master item: Foldable ladders wall-mounting

CODE 49.573.03

AISI 316

Foldable ladder AISI316 extra narrow 3 steps
Foldable ladder AISI316 extra narrow 3 steps
Foldable ladder AISI316 extra narrow 3 steps
Foldable ladder AISI316 extra narrow 3 steps
Ladder Very narrow Steps 3 Length mm 630 Width mm 180
Centre distance mm 160
Ladder Very narrow
Steps 3
Length mm 630
Width mm 180
Centre distance mm 160
* Specially designed for rubber dinghies.
Made of mirror polished stainless steel, designed for stern mounting, fitted with oval steps; these type of steps are smoother and more comfortable than traditional rounded steps; the upper steps are coated with a anti-skid plastic material.
UOM: PZ
Height: 20 cm
Weight: 1,71 kg
Width: 35 cm
Cubage: 11.900 cm³
Length: 17 cm

Master items

Item Ladder Steps Length mm Width mm Centre distance mm
Foldable ladder AISI316 standard 3 steps
49.572.03
Standard 3 630 260 240
Foldable ladder AISI316 narrow 3 steps
49.572.33
Narrow 3 630 220 200
Foldable ladder AISI316 extra narrow 3 steps
49.573.03
Very narrow 3 630 180 160
Foldable ladder AISI316 standard 4 steps
49.572.04
Standard 4 900 260 240
Foldable ladder AISI316 standard 5 steps
49.572.05
Standard 5 1150 260 240
