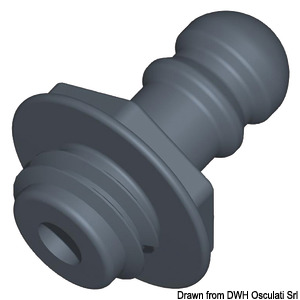

Delahousse Quick Fit-ball pin long/short

Code	Male	Description	Short/short thread with long ball pin	Opening load kg with: - 10.341.01	7,0	Opening load kg with: - 10.341.02	5,6
Opening load kg with: - 10.341.03	5,6		100

Code	Male
Description	Short/short thread with long ball pin
Opening load kg with: - 10.341.01	7,0
Opening load kg with: - 10.341.02	5,6
Opening load kg with: - 10.341.03	5,6
	100

10.342.00 Marking Pin to be used at the rear of the panel for mounting without measuring.

Hidden and easy fastening, no special tools required.
For panels made of wood, metal, resin, etc.
With or without seals.
Material: PA6 (black nylon).

UOM: CF

Height: 7 cm

Weight: 0,16 kg

Width: 10 cm

Cubage: 715 cm³

Length: 11 cm

Item	Code	Description	Opening load kg with: - 10.341.01	Opening load kg with: - 10.341.02	Opening load kg with: - 10.341.03
10.340.01	Male	Short thread with standard ball pin	6,5	5,8	5,8	100
10.340.02	Male	Short/short thread with standard ball pin	6,5	5,8	5,8	100
10.340.03	Male	Short thread with long ball pin	7,0	5,6	5,6	100
10.340.04	Male	Short/short thread with long ball pin	7,0	5,6	5,6	100
10.341.01	Female	Standard model with 20-mm bore and 2.5-mm hear overhang	-	-	-	100
10.341.02	Female	Self-aligning model with 25-mm bore and 2.5-mm hear overhang	-	-	-	100
10.341.03	Female	Square self-aligning model with 25-mm bore and 2.7-mm hear overhang	-	-	-	100
