Removable 3 stage table pedestal m-gas spring

Removable 3 stage table pedestal m-gas spring

Go to the full master item: Removable tri-telescopic table pedestal

CODE 48.421.03

GAS SPRING

Removable 3 stage table pedestal m-gas spring
Removable 3 stage table pedestal m-gas spring
Removable 3 stage table pedestal m-gas spring
Type Gas spring Height H mm 320/690 Base Ø mm 171 Tube Ø mm 70/60/50
Upper aluminium base included mm 168x168 Optional additional base* 48.421.12
Type Gas spring
Height H mm 320/690
Base Ø mm 171
Tube Ø mm 70/60/50

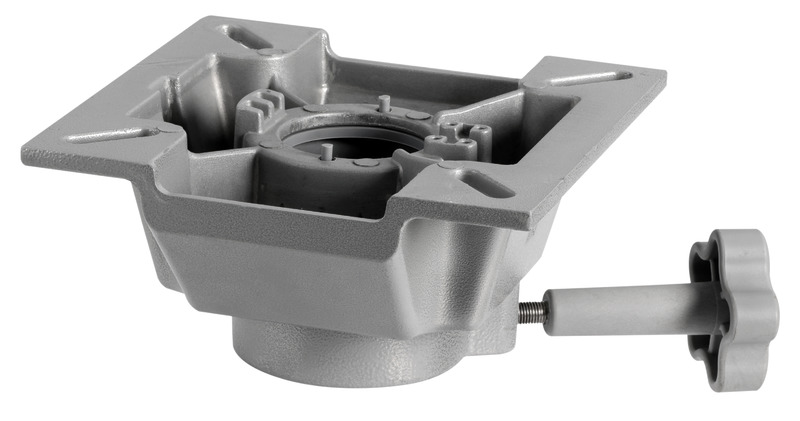

Upper aluminium base included mm 168x168
Optional additional base* 48.421.12
Made of anodized aluminium.
Flush mount base and plug.
UOM: PZ
Height: 40 cm
Weight: 3,50 kg
Width: 15 cm
Cubage: 9.000 cm³
Length: 15 cm

Master items

Item Type Height H mm Base Ø mm Tube Ø mm Upper aluminium base included mm Optional additional base*
Removable tri-telescopic table pedestal 290/690 mm
48.421.01
Standard 290/690 171 70/60/50 168x168 48.421.12
Removable 3 stage table pedestal m-gas spring
48.421.03
Gas spring 320/690 171 70/60/50 168x168 48.421.12
